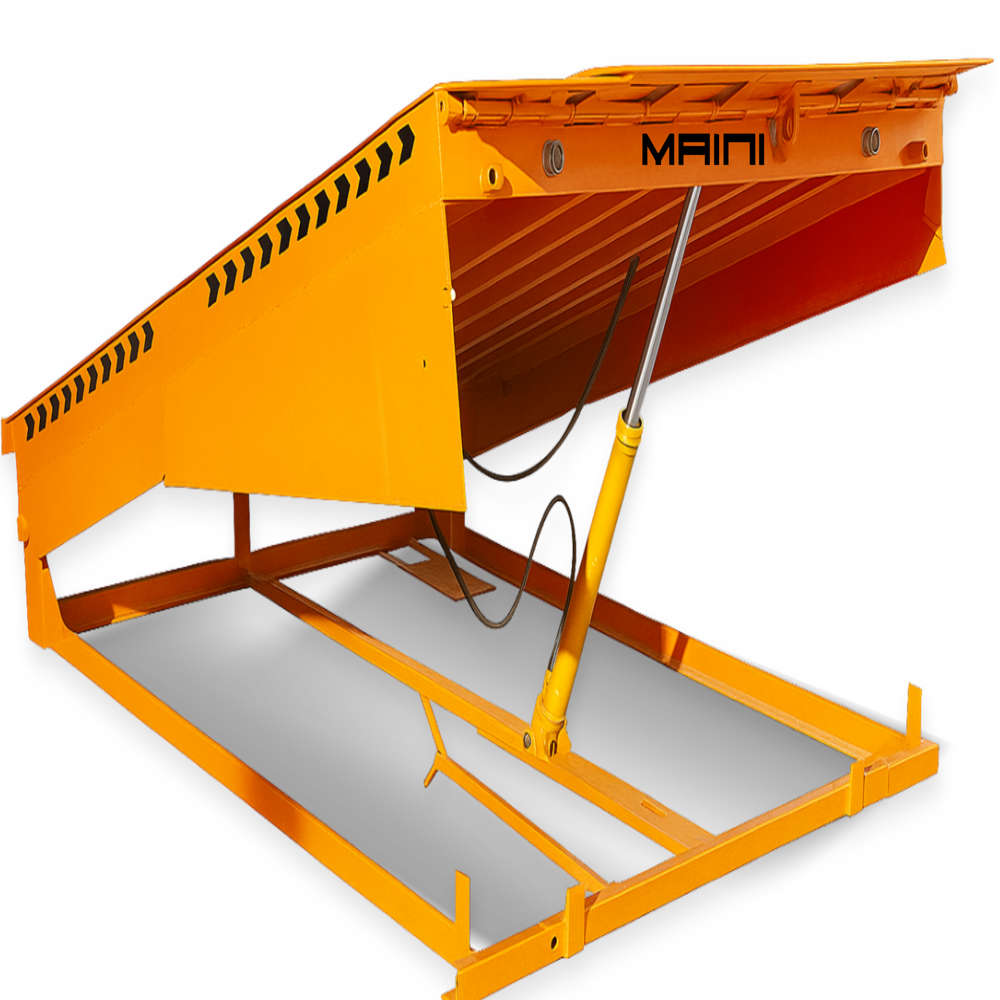

Dock Leveler Ramp

Name: Dock Leveler Ramp
Brand: MAINI MATERIALS MOVEMENT PVT. LTD.
Price: 160000.0 INR
Availability: InStock

Price 160000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Dock Leveler Ramp Specification

Motor Type
Electric hydraulic motor

Control System
Push-button or remote control

Features
Overload safety valve, emergency stop function

Rotation Type
Fixed

Forklift
Compatible with all standard forklifts

Equipment Type
Dock Leveler Ramp

Lifting Speed
Approximately 8-12 seconds full lift

Condition
New

Lifting Capacity
Up to 10,000 kg

Max. Lifting Load
10,000 kg

Max. Lifting Height
Up to 480 mm

Power Source
Electric/Hydraulic

Power Consumption
2-3 kW

Voltage
415 V (3 Phase) or as per requirement

Feature
Hydraulic operation, non-slip platform, robust design

Attributes
Heavy-duty, corrosion-resistant structure

Dock Height Range
1200 mm to 1700 mm

Color Options
Custom colors available

Platform Material
High-strength steel

Installation Type
Pit mounted or dock edge mounted

Usage/Application
Warehouses, logistics centers, loading bays

Operating Temperature
-10C to 55C

Lip Length
400 mm standard

Surface Finish
Powder-coated for longevity

Maintenance
Low maintenance design

Deck Width
2100 mm or as per requirement

Dock Leveler Ramp Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Week

About Dock Leveler Ramp

Note: Prices start from the above-mentioned amount and may vary based on the model, features, and customization requirements.

MAINI DOCK LEVELER

Power Every Load. Secure Every Move.

Maini Dock Levelers represent precision engineering, unmatched durability, and uncompromised safety. Designed to seamlessly bridge the gap between the dock and the truck, they enable smooth, stable, and accident-free loading and unloading, ensuring high operational efficiency even in the most demanding environments.

Manufactured using high-strength structural steel, advanced hydraulic systems, and intelligent safety mechanisms, Maini Dock Levelers are engineered for long service life with minimal maintenance. Their robust design reduces downtime, improves throughput, and delivers measurable returns on investment across logistics, warehousing, and industrial operations.

The Maini Advantage

Indias first Dock Leveler manufacturer
Worlds 5th largest Dock Leveler manufacturer by volume
31 years of proven engineering excellence
Custom-built solutions for every dock up to 32 tons capacity
Seamless, accident-free dock-to-truck transitions
Robust, maintenance-free performance designed for long-term reliability

Key Highlights

Full-Size Bottom Frame

Ensures uniform load transfer to the dock pit, minimizing structural stress, reducing wear, and maintaining consistent operational performance.

Smartly Concealed, Safely Protected Hydraulics

Fully enclosed hydraulic pump and pipelines
Single-hose cylinder design for enhanced safety and simplified maintenance
Velocity fuse on cylinder to prevent free deck fall

Seamless Lip Contact

Tilted lip crown design ensures smooth, uniform seating of the lip onto the truck bed for secure and efficient loading operations.

Robust I-Beam / ISMB Support Structure

Provides exceptional strength, structural integrity, and long-term stability, even under continuous heavy-duty use.

Specially Designed Floor-Mounted Dock Leveler

Mounted on a heavy-duty mild steel stand with 200 mm adjustability on all four sides, ensuring precise installation, superior stability, and durability.

Engineered for Stability & Safety

Integrated side railings enhance operator safety during loading and unloading operations.

Enclosed Power Pack

Equipped with reinforced metal spiral hose protection, safeguarding hydraulic lines, extending hose life, and ensuring dependable performance in harsh operating conditions.

Automatic Lip Mechanism

Single-button pendant operation enables smooth, precise, and effortless dock leveling, allowing seamless integration into daily workflows.

Standard Accessories

Dock bumpers Set of 2
(325 mm 250 mm 100 mm)
Standard hydraulic hose length 5 meters
Mechanical maintenance strut for safe servicing

Optional Accessories

Additional dock bumpers
Dock LED lights
Control panel
Bollards (Set of 2)
Beacon and buzzer
Safety railings
Wheel guides
Wheel chokes (Set of 2)
Traffic light system
Lock-Out / Tag-Out for control panel

Robust Construction and Longevity

Constructed from high-strength steel, the dock leveler ramp is built for demanding warehouse and logistics environments. The powder-coated surface improves its resistance to corrosion, providing longevity and reliability even with regular heavy-duty use. This robust build minimizes damage from forklifts and other equipment, ensuring stable operations and reducing long-term costs through less frequent replacement or repairs.

Advanced Hydraulic Operation

The equipment is powered by an electric hydraulic motor, designed for rapid and smooth lifting-achieving full lift in only 8-12 seconds. The push-button or remote control system promotes ease of use. With advanced safety features such as an overload safety valve and an emergency stop function, operators benefit from a safe and streamlined workflow that minimizes risks during high-volume loading or unloading operations.

Flexible Installation and Customization

This dock leveler ramp can be installed either pit mounted or dock edge mounted, adapting to varying warehouse layouts. Deck width and color options are customizable, allowing the product to seamlessly integrate with existing infrastructure and company branding. Its versatility ensures it meets diverse warehouse and logistics needs effectively.

FAQ's of Dock Leveler Ramp:

Q: How is the dock leveler ramp installed and where can it be mounted?

A: The dock leveler ramp can be installed as either pit mounted or dock edge mounted. This flexibility allows it to integrate seamlessly into various warehouse, logistics center, or loading bay layouts, ensuring efficient operations in different building infrastructures.

Q: What is the maximum lifting capacity and height of this dock leveler?

A: This dock leveler ramp supports a maximum lifting load of up to 10,000 kg and can achieve a lifting height of up to 480 mm, accommodating a dock height range of 1200 mm to 1700 mm to meet a wide array of loading requirements.

Q: When is the dock leveler ramp typically used, and which environments is it best suited for?

A: It is most commonly used during loading and unloading operations in warehouses, logistics centers, and commercial loading bays, providing a stable bridge between docks and vehicle beds for seamless cargo transfer.

Q: What operating temperatures can the dock leveler ramp withstand?

A: The dock leveler ramp is engineered to perform reliably in ambient temperatures ranging from -10C to 55C, making it suitable for diverse climates and challenging operational settings.

Q: How does the hydraulic system and control process work?

A: The ramp operates hydraulically, using an electric hydraulic motor and a control system that can be operated by either push-button or remote control. The lift cycle is fast, taking approximately 8-12 seconds to reach full lift, and includes essential safety features like overload safety valves and an emergency stop function.

Q: What are the maintenance requirements and long-term benefits of this dock leveler?

A: Designed for low maintenance, this dock leveler features a corrosion-resistant, powder-coated structure that minimizes the need for frequent servicing. Its robust design leads to enhanced durability, reduced downtime, and long service life, providing significant operational and cost benefits to users.

Q: Is this dock leveler ramp compatible with forklifts, and what surface features enhance its usage?

A: Yes, the dock leveler is compatible with all standard forklifts. The platform includes a non-slip surface to enhance safety, ensuring secure vehicle movement during loading and unloading operations.
